Integrating Linode events

Modified on Thu, 25 May, 2023 at 12:25 PM

TABLE OF CONTENTS

Overview of the Linode Receiver
Configuring the Linode receiver
Installing the Linode receiver
Testing the Linode receiver

Overview of the Linode Receiver

It’s pretty simple, the Direktiv receiver will connect to the Linode API using an Personal Access Token created in the console.

Configuring the Linode receiver

The receiver is installed and configured using the following YAML file:

apiVersion: v1
kind: ConfigMap
metadata:
  name: linode-receiver-cfg-cm
data:
  config.yaml: |
    linode:
      linodeAuthToken: <linode-token>

    direktiv:
      endpoint: https://<<direktiv-url>>/api/namespaces/<<namespace>>/broadcast
      insecureSkipVerify: true
      token: <<direktiv-token>>
      event-on-error: true
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: linode-receiver
  labels:
    app: linode-receiver
spec:
  replicas: 1
  selector:
    matchLabels:
      app: linode-receiver
  template:
    metadata:
      annotations:
        linkerd.io/inject: disabled
      labels:
        app: linode-receiver
    spec:
      volumes:
      - name: linodeconf
        configMap:
          name: linode-receiver-cfg-cm
      securityContext:
        runAsNonRoot: true
        runAsUser: 65532
        runAsGroup: 65532
      containers:
        - name: linode-receiver
          image: gcr.io/direktiv/receivers/linode-receiver:1.0
          imagePullPolicy: Always
          volumeMounts:
          - name: linodeconf
            mountPath: "/config"
            readOnly: false

The following information is needed:

linodeAuthToken: the Personal Authentication token can be generated from your profile page.

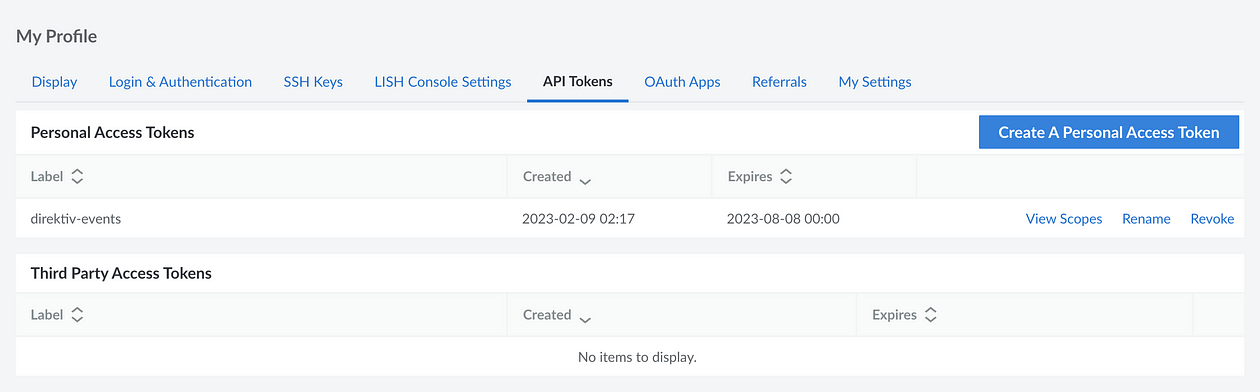

Linode Personal Authentication Token creation

endpoint: just add you Direktiv URL and the namespace you want the events to be sent to (e.g. https://linode.direktiv.io/api/namespaces/linode-workflows/broadcast)
token: this is your Direktiv authentication token, created on the namespace level and given the appropriate permissions (eventSend)

Creating an authentication token in Direktiv

For more information on permissions, see this Knowledge Base article

Installing the Linode receiver

For this blog article, I’m going to assume you have a Direktiv instance available and access to kubectl to install the receiver.

Create the YAML file as described above. In this case, I called it linode-receiver.yaml with the following configuration:

apiVersion: v1
kind: ConfigMap
metadata:
  name: linode-receiver-cfg-cm
data:
  config.yaml: |
    linode:
      linodeAuthToken: 89dc3fc6b......b768b04b7224

    direktiv:
      endpoint: https://linode.direktiv.io/api/namespaces/linode-workflows/broadcast
      insecureSkipVerify: true
      token: 4.........KZn89FSk_Vslskjdi0md
      event-on-error: true
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: linode-receiver
  labels:
    app: linode-receiver
spec:
  replicas: 1
  selector:
    matchLabels:
      app: linode-receiver
  template:
    metadata:
      annotations:
        linkerd.io/inject: disabled
      labels:
        app: linode-receiver
    spec:
      volumes:
      - name: linodeconf
        configMap:
          name: linode-receiver-cfg-cm
      securityContext:
        runAsNonRoot: true
        runAsUser: 65532
        runAsGroup: 65532
      containers:
        - name: linode-receiver
          image: gcr.io/direktiv/receivers/linode-receiver:1.0
          imagePullPolicy: Always
          volumeMounts:
          - name: linodeconf
            mountPath: "/config"
            readOnly: false

Next step, simply run the following command:

kubectl apply -f linode-receiver.yaml

This will produce the following output:

configmap/linode-receiver-cfg-cm created
deployment.apps/linode-receiver created

This will install the receiver. You can verify that it’s all up and running:

# kubectl get pods
NAME                                          READY   STATUS    RESTARTS   AGE
direktiv-api-6f8567555b-pq7q8                 2/2     Running   0          13d
direktiv-flow-564c8fc4cc-jh5dh                3/3     Running   0          13d
direktiv-functions-6f6698d7fb-s7n9z           2/2     Running   0          13d
direktiv-prometheus-server-667b8c6d65-6nzxm   3/3     Running   0          13d
direktiv-ui-d947dccc-zlzxc                    2/2     Running   0          13d
knative-operator-58647bbfd5-w9kvc             1/1     Running   0          13d
linode-receiver-547b5fd95d-mphxx              1/1     Running   0          22s
operator-webhook-b866dc4c-6klqx               1/1     Running   0          13d

Testing the Linode receiver

To make sure that we receive the events, let’s execute 2 actions in our Linode console and view the output.

The workflow

The workflow has a start definition that instructs Direktiv to kick-off the flow whenever it receives 2 types of events:

token_create
linode_boot

Depending on the type of event received, Direktiv will either just print the event contents (for a token_create event) or for a linode_boot event query the Linode API for more information on the node:

description: A simple workflow that waits for Linode Events

start:
  type: eventsXor
  state: check-event
  events:
  - type: token_create
  - type: linode_boot

functions:
  - id: http-request
    image: gcr.io/direktiv/functions/http-request:1.0
    type: knative-workflow

states:
  - id: check-event
    log: jq(.)
    type: switch
    defaultTransition: print-event
    conditions:
    - condition: 'jq(.token_create != null)'
      transition: print-event
    - condition: 'jq(.linode_boot != null)'
      transition: print-node-info

  - id: print-node-info
    type: action
    log: jq(.)
    action:
      secrets: ["LINODE_TOKEN"]
      function: http-request
      input:
        debug: true
        url: jq("https://api.linode.com" + .linode_boot.data.entity.url)'
        headers:
          Authorization: "Bearer jq(.secrets.LINODE_TOKEN)"

  - id: print-event
    type: noop
    log: jq(.)

Create a new API Token

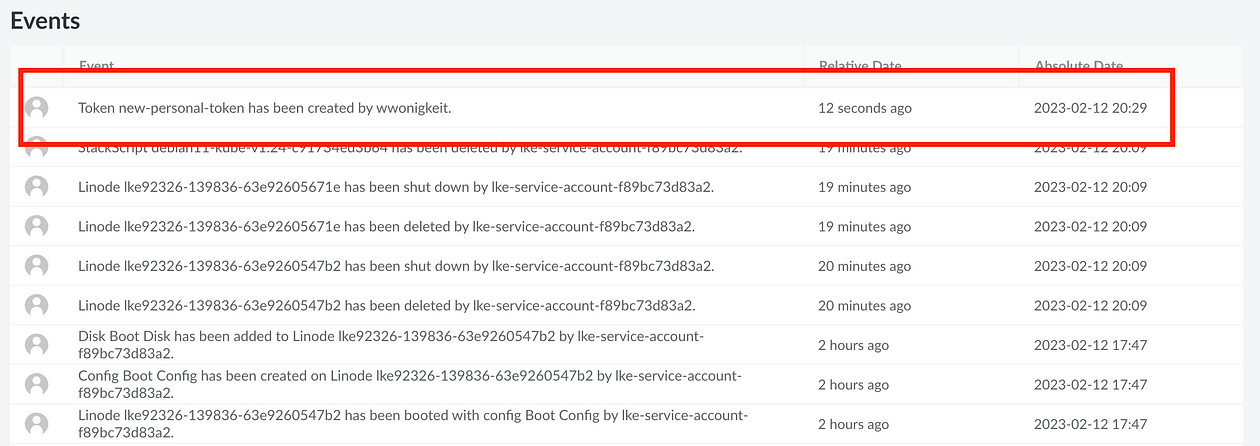

In the Linode console, we created a new API token, as can be seen in the “Events” view of the Linode console:

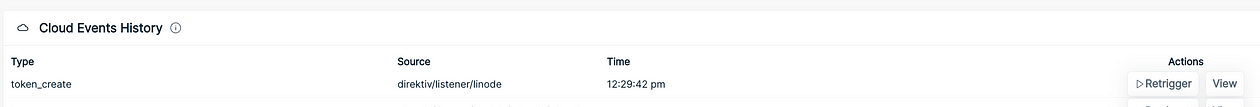

In Direktiv, a new CloudEvent arrived at the same time:

The event name is token_create and using a simple workflow that listens for the event and print the details, we can see the content of the event:

{
  "token_create": {
    "data": {
      "action": "token_create",
      "entity": {
        "id": 44518363,
        "label": "new-personal-token",
        "status": "",
        "type": "token",
        "url": "/v4/profile/tokens/44518363"
      },
      "id": 429910244,
      "percent_complete": 0,
      "rate": null,
      "read": false,
      "secondary_entity": null,
      "seen": false,
      "status": "notification",
      "username": "wwonigkeit"
    },
    "id": "b4743aa2-39e9-401a-b981-4dc25eb2fae9",
    "source": "direktiv/listener/linode",
    "specversion": "1.0",
    "time": "2023-02-12T20:29:40Z",
    "traceparent": "00-d2e3b45cdd56bbc4304fe8c67d01bb06-f58741659808b5e1-00",
    "type": "token_create"
  }
}

Create a Linode Kubernetes cluster (example events)

In the process of creating a new Kubernetes cluster under Linode, we will receive a couple of notification on a device booting successfully. So what we want to do is print more information the devices as they boot successfully.

In this case I’m building a simple Kubernetes cluster in Linode as follow:

Monitoring the Linode console, you can see a whole flurry of events hitting the “Events” tab:

And in Direktiv, you can see the same events being received:

So let’s look at one of the linode_boot event contents:

{
  "linode_boot": {
    "data": {
      "action": "linode_boot",
      "entity": {
        "id": 42597067,
        "label": "lke92339-139853-63e94fe078ca",
        "status": "",
        "type": "linode",
        "url": "/v4/linode/instances/42597067"
      },
      "id": 429916562,
      "percent_complete": 0,
      "rate": null,
      "read": false,
      "secondary_entity": {
        "id": 45262245,
        "label": "Boot Config",
        "status": "",
        "type": "linode_config",
        "url": "/v4/linode/instances/42597067/configs/45262245"
      },
      "seen": false,
      "status": "scheduled",
      "username": "lke-service-account-429d3d60ac22"
    },
    "id": "47292c03-3306-4c84-a444-eeb158ebf26e",
    "source": "direktiv/listener/linode",
    "specversion": "1.0",
    "time": "2023-02-12T20:46:44Z",
    "traceparent": "00-56a60cd32edfabf1399cf422d4918d05-b7fa53fdca230aae-00",
    "type": "linode_boot"
  }
}

We can see a reference to an entity and a secondary_entity with a url field (which we assume point to the instance directly in the API). The workflow uses this to query the Linode API for more information on the device in question (the device for which the linode_boot event was sent).

The following extract from the workflow shows the logic:

  - id: print-node-info
    type: action
    log: jq(.)
    action:
      secrets: ["LINODE_TOKEN"]
      function: http-request
      input:
        debug: true
        url: jq("https://api.linode.com" + .linode_boot.data.entity.url)'
        headers:
          Authorization: "Bearer jq(.secrets.LINODE_TOKEN)"

We can see the workflow running as soon as the event is received (we received 3 linode_boot events from the cluster build):

And now let’s look at the output of the workflow:

{
  "linode_boot": {
    "data": {
      "action": "linode_boot",
      "entity": {
        "id": 42597067,
        "label": "lke92339-139853-63e94fe078ca",
        "status": "",
        "type": "linode",
        "url": "/v4/linode/instances/42597067"
      },
      "id": 429916562,
      "percent_complete": 0,
      "rate": null,
      "read": false,
      "secondary_entity": {
        "id": 45262245,
        "label": "Boot Config",
        "status": "",
        "type": "linode_config",
        "url": "/v4/linode/instances/42597067/configs/45262245"
      },
      "seen": false,
      "status": "scheduled",
      "username": "lke-service-account-429d3d60ac22"
    },
    "id": "47292c03-3306-4c84-a444-eeb158ebf26e",
    "source": "direktiv/listener/linode",
    "specversion": "1.0",
    "time": "2023-02-12T20:46:44Z",
    "traceparent": "00-56a60cd32edfabf1399cf422d4918d05-b7fa53fdca230aae-00",
    "type": "linode_boot"
  },
  "return": [
    {
      "code": 200,
      "headers": {
        "Access-Control-Allow-Credentials": [
          "true"
        ],
        "Access-Control-Allow-Headers": [
          "Authorization, Origin, X-Requested-With, Content-Type, Accept, X-Filter"
        ],
        "Access-Control-Allow-Methods": [
          "HEAD, GET, OPTIONS, POST, PUT, DELETE"
        ],
        "Access-Control-Allow-Origin": [
          "*"
        ],
        "Access-Control-Expose-Headers": [
          "X-OAuth-Scopes, X-Accepted-OAuth-Scopes, X-Status"
        ],
        "Cache-Control": [
          "private, max-age=0, s-maxage=0, no-cache, no-store",
          "private, max-age=60, s-maxage=60"
        ],
        "Content-Length": [
          "753"
        ],
        "Content-Security-Policy": [
          "default-src 'none'"
        ],
        "Content-Type": [
          "application/json"
        ],
        "Date": [
          "Sun, 12 Feb 2023 21:05:15 GMT"
        ],
        "Retry-After": [
          "60"
        ],
        "Server": [
          "nginx"
        ],
        "Strict-Transport-Security": [
          "max-age=31536000"
        ],
        "Vary": [
          "Authorization, X-Filter",
          "Authorization, X-Filter"
        ],
        "X-Accepted-Oauth-Scopes": [
          "linodes:read_only"
        ],
        "X-Content-Type-Options": [
          "nosniff"
        ],
        "X-Customer-Uuid": [
          "CB9A1A60-A762-465D-B7E5ABF5259C24BC"
        ],
        "X-Frame-Options": [
          "DENY",
          "DENY"
        ],
        "X-Oauth-Scopes": [
          "*"
        ],
        "X-Ratelimit-Limit": [
          "800"
        ],
        "X-Ratelimit-Remaining": [
          "799"
        ],
        "X-Ratelimit-Reset": [
          "1676235976"
        ],
        "X-Spec-Version": [
          "4.144.2"
        ],
        "X-Xss-Protection": [
          "1; mode=block"
        ]
      },
      "result": {
        "alerts": {
          "cpu": 180,
          "io": 10000,
          "network_in": 10,
          "network_out": 10,
          "transfer_quota": 80
        },
        "backups": {
          "available": false,
          "enabled": false,
          "last_successful": null,
          "schedule": {
            "day": null,
            "window": null
          }
        },
        "created": "2023-02-12T20:45:21",
        "group": "",
        "host_uuid": "196741ef4f3d7d4a2ac50aa5c05091b5704df0ce",
        "hypervisor": "kvm",
        "id": 42597067,
        "image": "linode/debian11-kube-v1.24.8",
        "ipv4": [
          "50.116.53.237",
          "192.168.180.215"
        ],
        "ipv6": "2600:3c03::f03c:93ff:fe2a:b331/128",
        "label": "lke92339-139853-63e94fe078ca",
        "region": "us-east",
        "specs": {
          "disk": 81920,
          "gpus": 0,
          "memory": 4096,
          "transfer": 4000,
          "vcpus": 2
        },
        "status": "running",
        "tags": [],
        "type": "g6-dedicated-2",
        "updated": "2023-02-12T20:45:21",
        "watchdog_enabled": true
      },
      "status": "200 OK",
      "success": true
    }
  ]
}

Finally, let’s clean this up so that we have more readable information at the workflow output. We can accomplish this by using a Direktiv transform to dump all the information we don’t need (such as the API response headers and the original event information).

The action now looks like this:

  - id: print-node-info
    type: action
    log: jq(.)
    action:
      secrets: ["LINODE_TOKEN"]
      function: http-request
      input:
        debug: true
        url: jq("https://api.linode.com" + .linode_boot.data.entity.url)'
        headers:
          Authorization: "Bearer jq(.secrets.LINODE_TOKEN)"
    transform: jq(.return[0].result)

And the output … well nicely sanitised:

{
  "alerts": {
    "cpu": 180,
    "io": 10000,
    "network_in": 10,
    "network_out": 10,
    "transfer_quota": 80
  },
  "backups": {
    "available": false,
    "enabled": false,
    "last_successful": null,
    "schedule": {
      "day": null,
      "window": null
    }
  },
  "created": "2023-02-12T20:45:21",
  "group": "",
  "host_uuid": "196741ef4f3d7d4a2ac50aa5c05091b5704df0ce",
  "hypervisor": "kvm",
  "id": 42597067,
  "image": "linode/debian11-kube-v1.24.8",
  "ipv4": [
    "50.116.53.237",
    "192.168.180.215"
  ],
  "ipv6": "2600:3c03::f03c:93ff:fe2a:b331/128",
  "label": "lke92339-139853-63e94fe078ca",
  "region": "us-east",
  "specs": {
    "disk": 81920,
    "gpus": 0,
    "memory": 4096,
    "transfer": 4000,
    "vcpus": 2
  },
  "status": "running",
  "tags": [],
  "type": "g6-dedicated-2",
  "updated": "2023-02-12T20:45:21",
  "watchdog_enabled": true
}
